贞光代理 光颉科技厚膜平面式排阻(CNF/CNF..A系列)
摘要：
可完全替代凹型與凸型排阻 ALTERNATIVE CONVEX AND CONCAVE TYPE
0402X2 / 0402X4 / 0603X4
厚膜平面式排阻 - CNF/CNF..A系列
Thick Film Flat Array Chip Resistor - CNF/CNF..A Series
Derating Curve/降额曲线
用于关键设计的排阻。最常见的尺寸是0603和0402提供平面式端接。排阻是多颗同性质电阻元件的单封装器件。当应用设计多个相同的电阻时，排阻通常用于方便和节省成本或空间。
Resistor Array for critical designs. The most common size of 0603 and 0402 are offering-flat terminations.Chip Resistor Arrays (Network) is single packaged device containing a network of homogeneous resistor elements. R array (R network) is typically used for convenience and cost or space saving when several same resistors applied in a layout.
范围\Scope
·本规范适用于所有尺寸的以钌基为材料的矩形固定片式电阻器。\This specification applies to all sizes of rectangular-type fixed chip resistors with Ruthenium-base as material.
特征\Features
·符合 AEC-Q200标准\AEC-Q200 Compliance
·体积小，重量轻\Small size and light weight
·降低装配成本并与贴片机匹配\Reduction of assembly costs and matching with placement machines
·可靠性、高品质\Reliability, high quality
·适用于回流焊\Suitable for IR reflow soldering
·可替代凹型與凸型排阻Alternative convex and concave type
应用\Applications
· 汽车工业\Automotive Industry
· 娱乐\Entertainment
· 电脑及相关产品\Computer & Related Products
· 通讯设备\Communication Equipment
· 电力设备\Power Equipment
· 测量仪器\Measuring Instrument

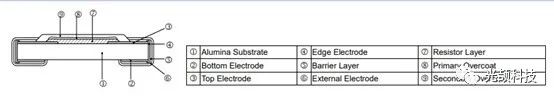

结构\Construction

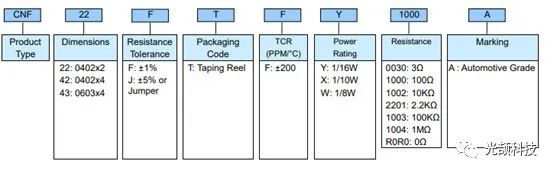

料件编号\Part Numbering

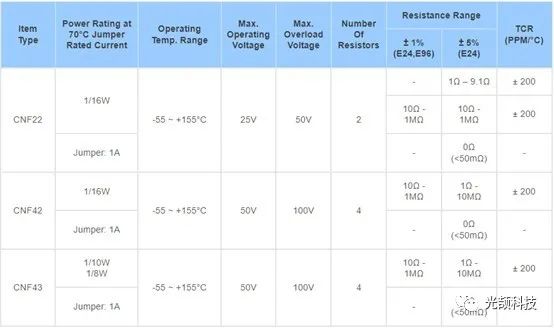

标准电器规格\Standard Electrical Specifications
工作电压=√（P*R）或上面列出的最大工作电压，以较低者为准。过载电压=2.5*√（P*R）或上面列出的最大过载电压，以较低者为准。
■ Viking能够根据客户的要求制造可选规格。Operating Voltage=√(P*R) or Max. Operating Voltage listed above, whichever is lower.
Overload Voltage=2.5*√(P*R) or Max. Overload Voltage listed above, whichever is lower.
■ Viking is capable of manufacturing the optional spec based on customer’s requirement.
